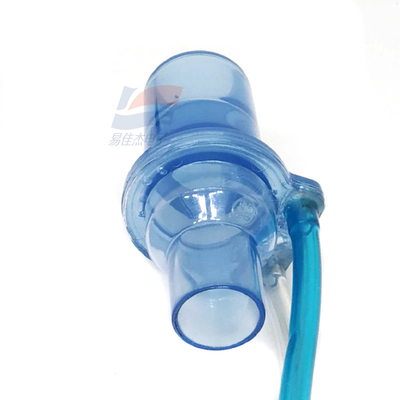

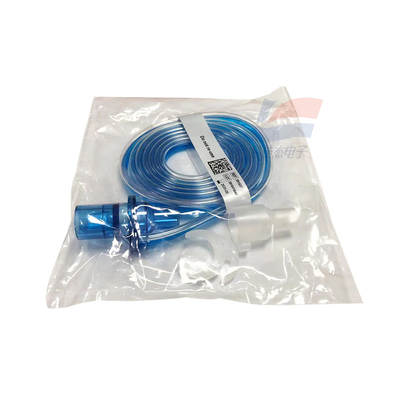

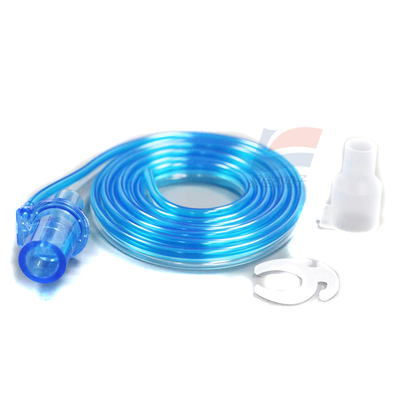

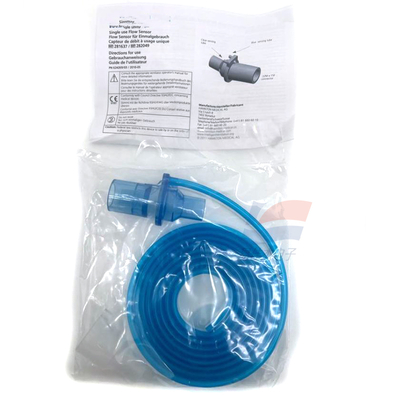

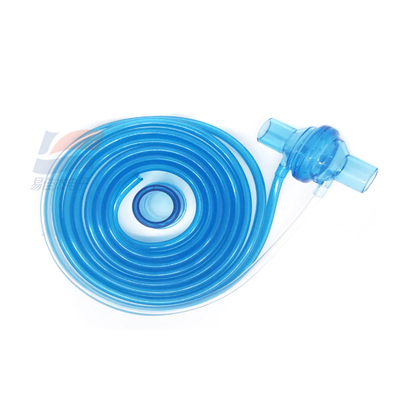

YJJ PN 281637 PN 282049 PN 282051 - Proximal Flow Sensors Are Suitable for Haimont Medical ventilators

Product Description:

YJJ PN 281637 PN 282049 PN 282051 - Proximal Flow Sensors Are Suitable for Haimont Medical ventilators

Features:

Diameter (ID, OD [mm]) / Description

Material

1 Connector OD15, ventilator side PSU

2 Tubing-PVC

3 Connectors for tubing Differential pressure measurement PSU

4 Direction index--

5 Individual serial number--

6 Connector OD22/ID15, patient sidePSU

7 Flap-PET Details Flow range 0 to 180 l/min (short term 260 l/min) Dead space

< 11 ml (functional)

Resistance

< 0.027 cmH2O/(l/min) over the complete flow range (-180 l/min to 180 l/min)

Weight

Approx. 14 g without tubes, 68 g with 188 cm tubes, 89 g with 260 cm tubes, 110 g with 330 cm tubes

Material

Complies with ISO 10993-1:2009 (biocompatibility) and Directive 2011/65/EU (RoHS).

Does not contain natural rubber latex, DEHP, or BPA.

Accuracy

For calibrated flow sensor volume-related parameters:

HAMILTON-C1/T1/MR1/C2/C3/C6 ventilators: ± 10% or ± 10 ml (whichever is greater)

HAMILTON-G5/S1 ventilators: ± 15% or ± 20 ml (whichever is greater)
