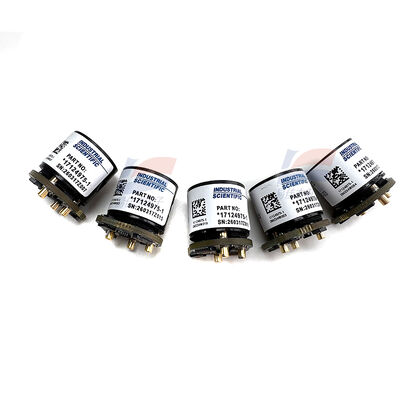

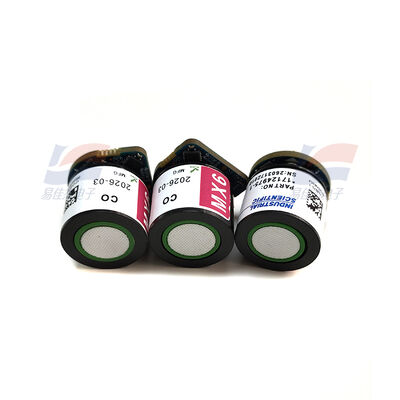

YJJ 17124975-1 Electrochemical Carbon Monoxide CO Gas Sensor for MX6 iBrid Six-in-One Gas Detector

Product Description:

YJJ 17124975-1 Electrochemical Carbon Monoxide (CO) Gas Sensor for MX6 iBrid Six-in-One Gas Detector

Features:

I. Model and Order Number

Model: 17124975-1

Corresponding gas: Carbon Monoxide (CO)

Applicable instrument model: Ingersoll Rand MX6 iBrid six-in-one gas detector (special replacement sensor)

II. Core Parameters (Electrochemical CO Sensor)

Detected gas: Carbon Monoxide (CO)

Range: 0–1500 ppm

Resolution: 1 ppm

Maximum overload: 2000 ppm

Response time T90: ≤ 60 s

Operating temperature: -20℃ ～ +55℃ ( -4℉ ～ 131℉ )

Humidity: 15%–95% RH (no condensation)

Life span: 2 years (normal environment)

Output signal: Linear current output, directly compatible with MX6 host

Package: MX6 specific cylindrical type, 3-pin connector

III. Main Applications

Industrial safety monitoring: Metallurgy, coal mines, chemical industry, tunnels, underground pipe galleries, etc. for CO leakage alarm.

Entry into confined spaces: Storage tanks, ship holds, sewers, cellars, etc. for oxygen deficiency and toxic gas detection.

Environmental protection and municipal: Garbage landfills, sewage treatment plants, boiler flue gas CO concentration monitoring.

Fire emergency: Rapid detection of toxic gas (CO) at fire scenes to ensure rescue safety.

Core feature of portable instrument: Ingersoll Rand MX6 multi-parameter detector with CO sensor as standard.

IV. Features and Selection Tips

Advantages: Factory compatibility, good linearity, strong stability, excellent anti-interference ability, plug-and-play, no calibration required (host automatically identifies after installation).

Limitations: Electrochemical consumable, accelerated loss in high-concentration environments; slightly cross-sensitive to H₂, NO.

Compared with the same series (MX6 sensors):

17124975-1: CO (0–1500 ppm)

17124975-2: H₂S (0–100 ppm)

17124975-3: O₂ (0–30% VOL)
