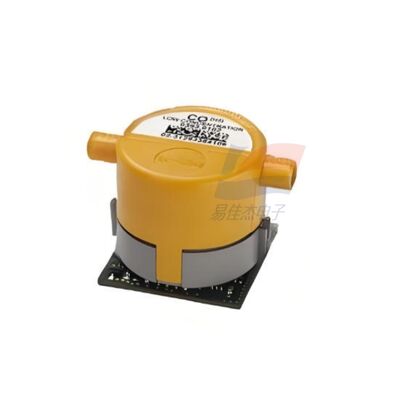

YJJ 0393 0102 0-500PPM Carbon Monoxide Gas Sensor Used For Industrial Flue Gas Emission Detection

Product Description:

YJJ 0393 0102 0-500PPM Carbon Monoxide Gas Sensor Used For Industrial Flue Gas Emission Detection

Features:

0393 0102 is a low-range hydrogen-compensated carbon monoxide (CO) electrochemical gas sensor under the German company Testo. It is specifically designed as an alternative sensor for Testo 340, Testo 350 and other series of smoke gas analyzers, and is commonly used for accurately detecting low-concentration carbon monoxide smoke gas. The following is an introduction to its detailed parameters and usage:
Core Parameters
Parameter Category Content
Core Measurement Parameters Targets carbon monoxide and has hydrogen compensation function, which can avoid measurement errors caused by hydrogen interference and ensure the accuracy of low-concentration carbon monoxide detection.
Measurement Range and Resolution Measurement range 0 - 500 ppm; resolution 1 ppm, can accurately capture the subtle concentration changes of carbon monoxide in the low-concentration range.
Measurement Accuracy Errors within 0 - 39.9 ppm range ±2 ppm; errors within 40 - 500 ppm range ±5% of the measured value, meeting the accuracy requirements for low-concentration carbon monoxide detection in smoke gas.
Response Time Response time is 40s (t95 standard, that is, the time required to reach 95% of the final measurement value), can quickly feedback the carbon monoxide concentration data in the smoke gas.
Installation and Calibration Characteristics Pre-calibration has been completed before leaving the factory. The sensor internally stores calibration adjustment data. No additional time-consuming calibration is required when replacing, and it can be disassembled and replaced at any time. It is compatible with the interfaces of Testo series analyzers and can be directly inserted into the equipment for use.
Main Uses
Industrial smoke gas emission detection: Suitable for portable smoke gas analyzers such as Testo 350, widely used in smoke gas detection scenarios of burners, engines, turbines, etc. For example, during the operation of factory boilers and small-scale generator sets, it can monitor the low-concentration carbon monoxide content in the exhaust gas in real time, judge whether the combustion is sufficient, and provide data support for optimizing the combustion efficiency of equipment.
Tail gas detection of small combustion equipment: Used for tail gas detection of small gas stoves, small heating boilers, etc. of catering facilities. If these equipment do not burn sufficiently, low-concentration carbon monoxide leakage will occur. With this sensor, abnormalities can be detected in time to avoid accumulation of carbon monoxide and potential safety hazards.
Maintenance backup for smoke gas detection equipment: As a dedicated backup sensor for smoke gas analyzers, it can ensure the continuity of detection work. When the original low-range carbon monoxide sensor of the analyzer fails or its performance declines, the 0393 0102 sensor can be quickly replaced to avoid the equipment shutdown affecting the progress of smoke gas detection. Commonly used in environmental protection inspection institutions and equipment operation teams in their inspection work.

Specifications:
