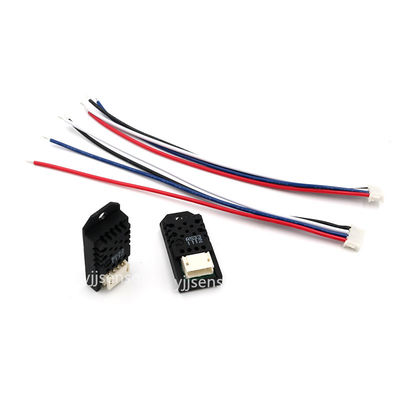

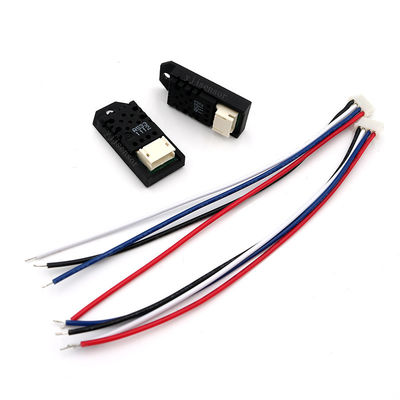

YJJ HTG3513CH Voltage Output Humidity Module Used For Temperature Humidity Detection Weather Stations

Product Description:

YJJ HTG3513CH Voltage Output Humidity Module - Used for temperature and humidity detection in weather stations

Features:

Temperature and humidity integrated module voltage output HTG3513CH

Voltage output humidity module HTG3513CH

-- - voltage output humidity module, relative humidity detection

Environmental protection Humirel humidity module, take the NTC 10 k Ω temperature output.Full range interchangeability.

I. main parameters of voltage output humidity module HTG3515CH:

(1) 0 ~ 100% RH relative humidity range

(2) accuracy 3% RH

(3) working temperature range - 40 ~ 110 ℃,

(4) 5s response time,

(5) 0 1% RH hysteresis.

(6) 3.3v DC power supply

(7) 0.5 ~ 2.3v output.

(8) anti-condensation

Ii. Application field of voltage output humidity module HTG3513CH

Air conditioning, HVAC, refrigerator, weather station, machine station, communication room, incubation room, curing room, drying cabinet and so on.

Parameters Specific Indicators

Power supply voltage 3.3Vdc, peak withstand voltage can reach 20Vdc (peak operation time should be less than 10% of the total operation time)

Operating current Typical value 1.0mA, maximum value 1.2mA

Output impedance 50Ω

Current-carrying capacity 1mA (minimum load resistance 8kΩ)

Thermal start-up time 150ms (reaches 90% signal stability value)

Humidity response time 5 - 10s (under wind speed of 1m/s condition, humidity changes from 33% to 75%, reaches 63% signal stability value)

Recovery time after condensation After immersion for 150 hours, recovery time is only 10s

Temperature coefficient (10 - 50℃) -0.05 to -0.1%RH/℃
