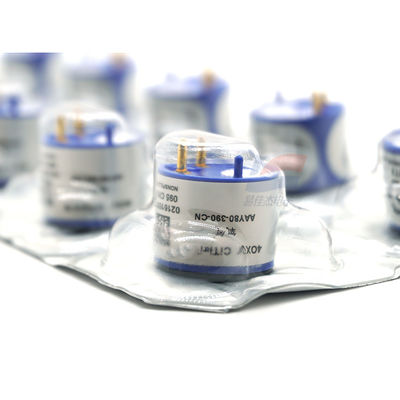

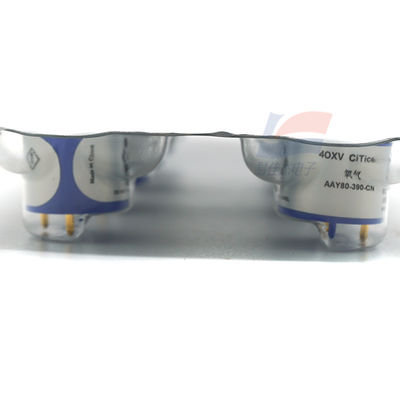

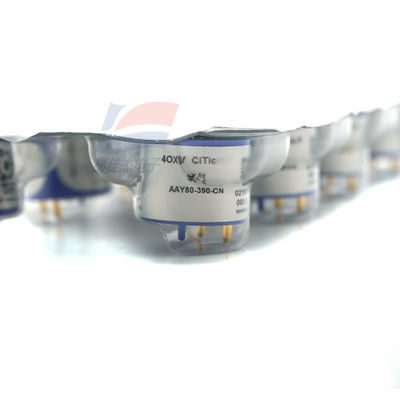

YJJ 4OXV AAY80-390-CN 4OX-V 0-30% Electrochemical Oxygen Sensor Measures Ambient Oxygen Concentration

Product Description:

YJJ 4OXV AAY80-390-CN 4OX-V 0-30% Electrochemical Oxygen Sensor Measures Ambient Oxygen Concentration

Features:

Oxygen sensor 4OXV technical parameters

measurement

How it works: electrochemistry

Measurement range: 1-25% O2

Maximum overrun range: 30%

Signal output: 0.1 0.02mA

Response time (T90) : < 15s

Zero drift: < 0.6% O2

-ity: many cases can be regarded as -, see the specific data

Electrical parameters

Load resistance: 100 Ω

The mechanical parameters

Weight: < 16g

Shell material: ABS

Using the environment

Use temperature: - 20 to 50 ℃

Temperature: 0-20 ℃

Thermal transient: < 23.5% O2

Pressure: atmospheric pressure 20%

Pressure coefficient: < 0.02%/mBar

Pressure transient: < 200% signal change

Humidity: 5-95%RH non-condensing, short term up to 0-99% non-condensing

life

Long-term sensitivity drift: < 2%/ month

< 5%/ year typical value

Use time: 2 years

Storage time: 6 months

Specifications:
