Λεπτομέρειες:
|
Φασματικό εύρος εξόδου: | Τύπος. 1 - 20 μm | Ανθεκτικό στη θερμότητα: | 40 ± 20 Ω |
---|---|---|---|
Σταθερή του χρόνου: | κα 15 | Εκτιμημένη κατανάλωση ισχύος: | 650 MW |
Τάση λειτουργίας: | 4.9 Β | Ρεύμα λειτουργίας: | 132 μΑ |
Επισημαίνω: | Infrared light source for NDIR gas analysis,Industrial infrared photoelectric sensor,JSIR350-4-AL-R-D6 infrared light source |

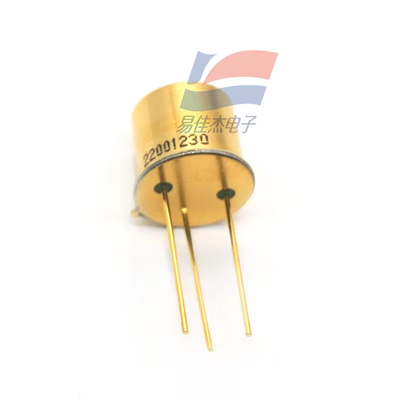

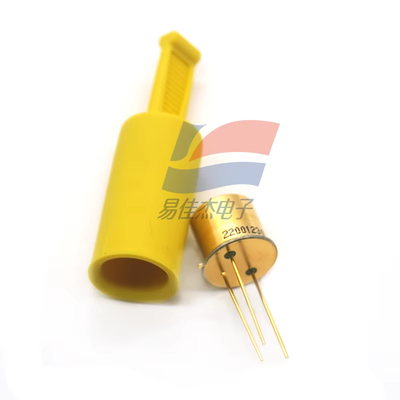

Infrared Light Source JSIR350-4-AL-R-D6 For NDIR Gas Analysis Industrial Commercial
Product Features:
Applications:
The JSIR350 - 4 - AL - R - D6 sensor, together with a thermopile and a pyroelectric detector, is used in NDIR gas analysis and other applications. It is suitable for industrial, commercial, and residential scenarios where reliable gas detection is required, such as detecting combustible gases or monitoring specific gas concentrations.
Parameters |
Values |
---|---|
Model Number | JSIR350 - 4 - AL - R - D6 |
Brand Name | Micro - Hybrid |
Spectral Output Range | Typ. 1 - 20 μm |
Hot Resistance | 40 ± 20 Ω |
Time Constant | 15 ms |
Rated Power Consumption | 650 mW |
Operating Voltage | 4.9 V |
Operating Current | 132 mA |
Effective Area Temperature | 640 °C |
Temperature Coefficient | 650 ppm/K |
Package | TO39 (modified) |
Service Life | > 100,000 h (at rated power, 40 Ω, 10 Hz, 50% duty cycle) |
Active Area | 2.2 x 2.2 mm² |
