YJJ NP P-301A-700AT 100PSI Pressure Sensor Is Used In Field Of Industrial Automation

Product Description:

YJJ NP P-301A-700AT 100PSI Pressure Sensor Is Used in Field of Industrial Automation

Features:

COMPANY's NP P series is a surface-mounted silicon pressure sensor that uses silicon to silicon fusion technology and ultra-small piezoresistive chips with high stability housed in a plastic case. The NP P series uses the integrated circuit pin structure and can be installed in narrow applications, thus providing a low-cost product for mass OEM users. NP P series under constant voltage power supply, produce a voltage signal proportional to the input pressure, users can through the signal regulation circuit to amplify or increase its additional value to meet their own product needs.

The NP P series is used for most non-corrosive gases and dry air measurements.

The characteristics of

Ultra-small volume, ultra-low cost

Surface mount (SO-8) structure, suitable for automatic component mounting

Operating temperature: -40℃~125℃

Static accuracy < ±0.2%FSO

Available in 100, 200 and 700Kpa absolute pressure ranges

application

Auto tire pressure testing

Medical equipment

Air conditioning equipment

Cable leak detection

Pressure switch and controller

Portable barometer, altimeter

Consumer instrument

Pressure type: Absolute
Work pressure: 100 psi
Accuracy: 0.1 %
Output type: Analog
Installation style: SMD/SMT
Port type: No Port
Package / Housing: SOIC-8
Minimum operating temperature: -40 °C
Maximum operating temperature: +125 °C
Series: NP P-301

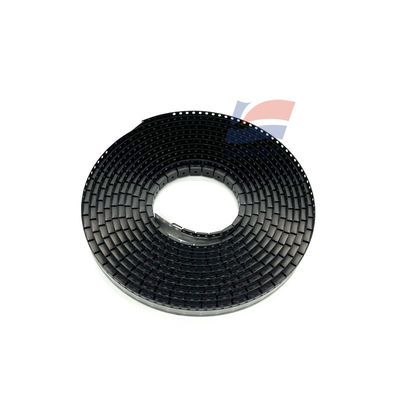

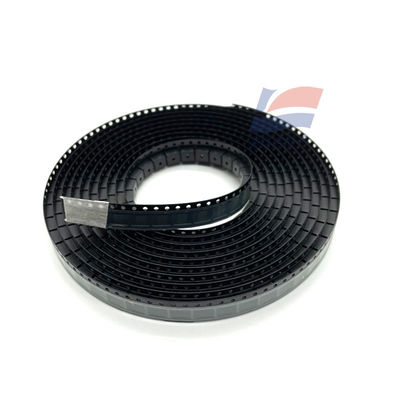

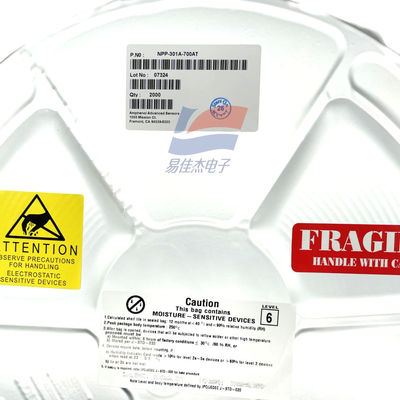

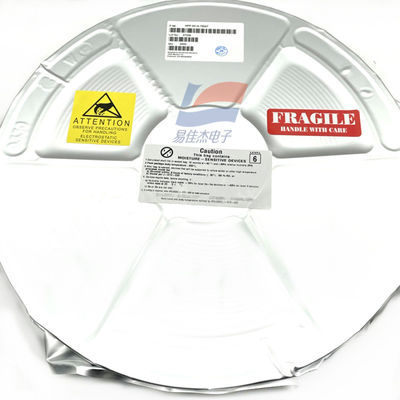

Package: Reel
Package: Cut Tape
Package: MouseReel
Trademark: Advanced Sensors
Humidity sensitivity: Yes
Output voltage: 60 mV
Product type: Board Mount Pressure Sensors 2000
Subcategory: Sensors
Maximum power supply voltage: 3 V
Trademark name: NovaSensor
Unit weight: 100 mg

Specifications:
