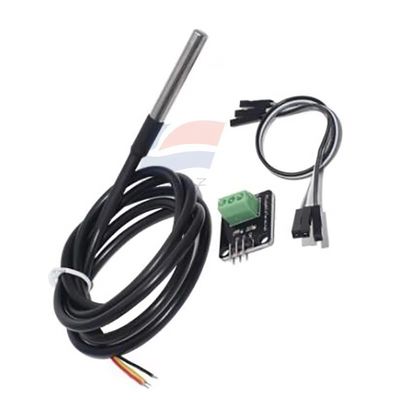

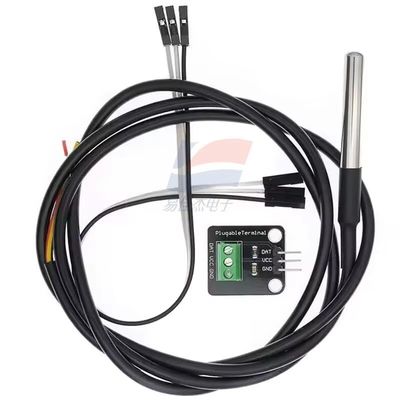

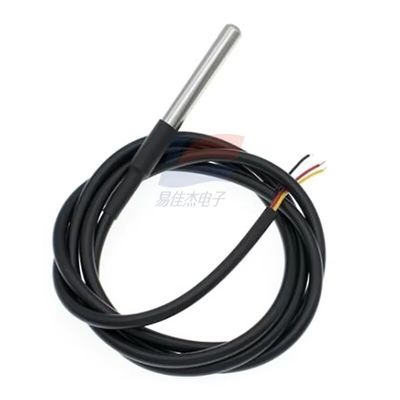

YJJ DS18B20 Digital Temperature Sensor Probe For Water Temperature Detection With Stainless Steel Waterproof Housing

Product Description:

YJJ DS18B20 Digital Temperature Sensor Probe for Water Temperature Detection With Stainless Steel Waterproof Housing

Features:

Using the digital temperature sensor DS18B20, with a high thermal conductivity sealing
gel encapsulation, ensures the high sensitivity and extremely small temperature delay of the temperature sensor. This temperature sensor supports the "one-wire bus" interface (1-Wire), with a temperature measurement range of -55°C to +125°C. Within the range of -10°C to +85°C, the accuracy is ±0.5°C. The on-site temperature is directly transmitted in digital form via the "one-wire bus", significantly improving the system's anti-interference ability. It is suitable for on-site temperature measurement in harsh environments. The DS18B20 digital temperature sensor all have a unique identifier, and the temperature acquisition device identifies the corresponding temperature sensor through the identifier. Sensor
The length of the lead wire can be customized according to the user's requirements.

Application scope:
1. Temperature monitoring of refrigerated storage rooms
2. GMP monitoring system for pharmaceutical factories
3. Monitoring of telecommunications equipment rooms
4. Beer production
5. Building automation
6. Warehouse temperature monitoring
7. Environmental monitoring
8. Process temperature monitoring
9. Air conditioning monitoring
10. Incubation temperature control
11. Temperature measurement in livestock farming
12. Temperature monitoring in greenhouse sheds
13. Household refrigerators (high-quality stainless steel tube packaging)
Waterproof, moisture-proof, rust-proof
Stainless steel housing (6*50mm), lead wire lengths: 1/2/3/5/8/10M
Each probe undergoes strict testing before leaving the factory
3.0V - 5.5V power supply
9 - 12 bit adjustable resolution
Temperature sensing range: -55℃ ~ +125℃
No external components required, unique single bus interface
Output lead wires: red (VCC), yellow (DATA), black (GND)
1) 304 stainless steel casing, 6mm * 50mm (customizable in other specifications)
2) Heat-conductive, high-temperature resistant, waterproof and moisture-proof sealant
Standard 1-meter long leads (customizable in other specifications and materials) 3)
4) DS18B20 chip, with three pins all enclosed in heat shrink tubing to prevent short circuits
5) External sealed heat shrink tubing 6)
The end of the wire can be customized for processing (such as tin plating or installation of various connectors)

Specifications:
