Product Description:

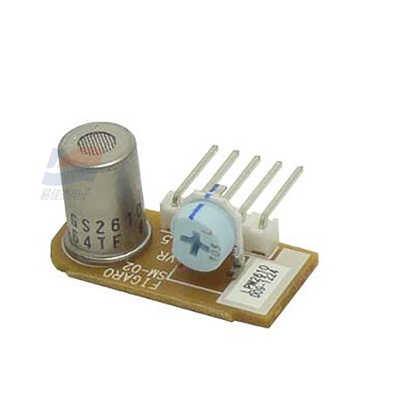

YJJ LPM2610-D09 LP Gas Pre-Calibration Module Used For Civilian LP Gas Alarm Controllers To Calibrate Already Set Values
Features:
Main applications
Indoor safety, industrial safety
Search for detected gases
Butane, propane
Special features
· Factory calibration
· Temperature compensation circuit
· Anti-interference gas sensor TGS2610
· Compact structure
· Compliant with RoHS2 standards
The LPM2610 comes with a sensor for eliminating substances such as alcohol in the selected humidity control module. It responds more quickly, thus having higher selectivity for LP gas and a filter for filtering out impure gases.
This is the most crucial step in the manufacturing process of a reliable civilian LP gas alarm - the calibration of the alarm point.
Using this module eliminates the need for this step. It also requires a significant investment in purchasing calibration equipment, which is a complex and time-consuming process.
More simply manufacture civilian LP gas alarm devices, making it easier for users to perform the expensive calibration process.
It includes a built-in thermistor sensor, and for users, Fabergé provides a gas detection circuit with a complex design.
And combined with the temperature compensation circuit that individually adjusts the load resistance of the small-power LP gas sensor, the output port enables the module to connect to the motherboard. This plug-in connection makes it easier to replace the sensor periodically.
This module. This motherboard can be used as a detector for either methane or LP gas, as long as the module is simply replaced, making the connection process more convenient.
Model number
Standard test conditions
Test gas conditions
Isobutane in the air ppm1250±100
RH65 ± 5%, C˚ ± 2C˚ 20
DC V5.0 ± 0.05 = VH Circuit conditions
DC V5.0 ± 0.05 = VC
48 hours of test preheating time
Standard test conditions
Electrical characteristics
DC V3.0 - 1.4) STD (Reference voltage VREF)
DC V3.0 - 1.4) STD (Output voltage VOUT)
Specifications:
| Wide temperature range |
-45°C to 130°C |
| Wide operating voltage range |
2.7V to 5.5V |
| High precision |
±0.25°C (-10°C to 100°C TO18) |
| Low noise |
0.002°C |
