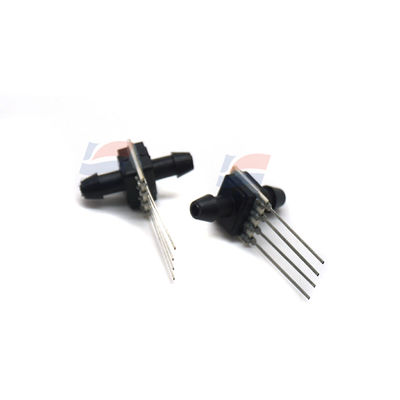

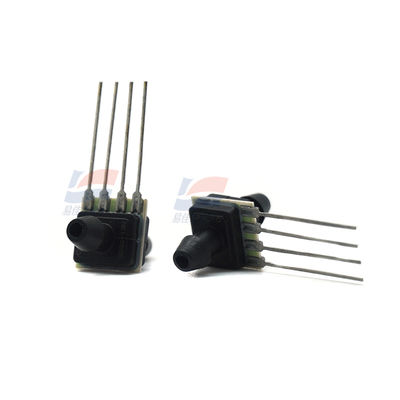

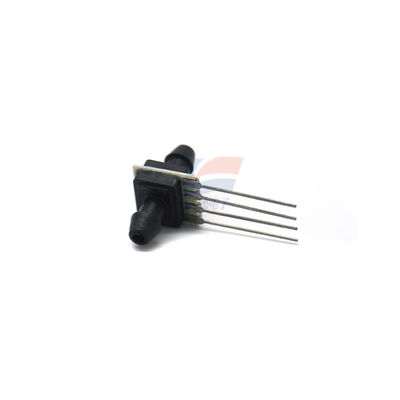

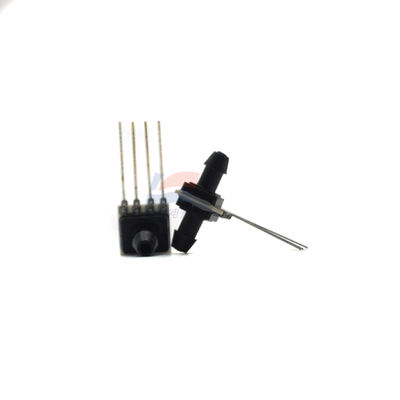

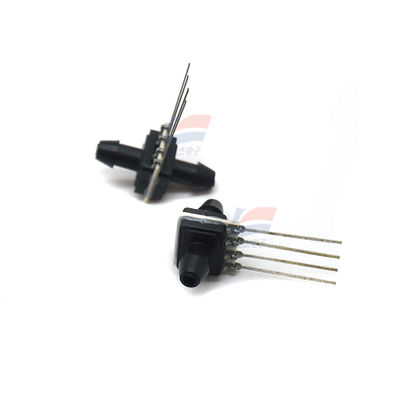

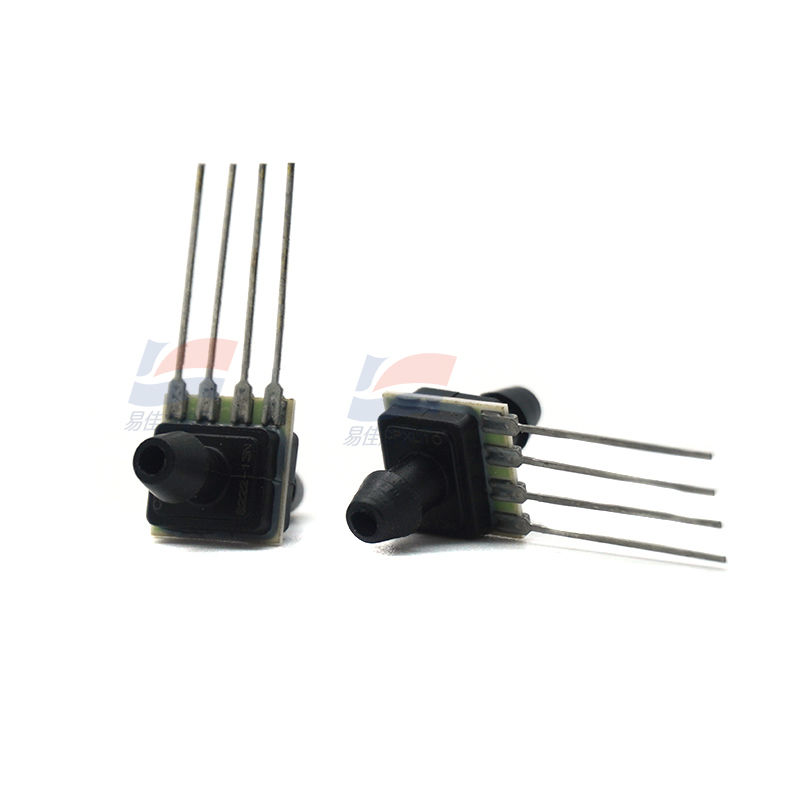

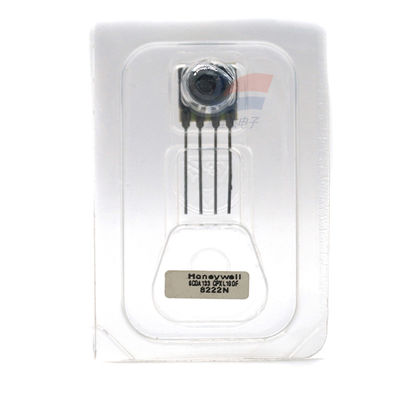

CPXL10DF Board Mount Silicon Pressure Sensors Differential Uncompensated

CPXL10DF Board Mount Silicon Pressure Sensors Differential Uncompensated

The CPX/CPXL and the CPC/CPCL Series sensors integrate silicon micromachined sensing technology, temperature
compensation, and calibration in a complete family of low cost packages. This series offers the most cost-effective solution for
design requirements.

These piezoresistive pressure sensors use micromachined silicon chips mounted on a ceramic and protected with a plastic
cap. Several tube arrangements with nylon housings are available for various pressure applications.

FEATURES
• Low cost, small size
• Temperature compensated
• Zero and span calibrated
• Millivolt output
• Differential, gage and absolute pressure
• Constant voltage excitation
• High impedance - low current

POTENTIAL APPLICATIONS
• Medical applications
• Applications requiring small size
• Applications requiring vacuum and positive
• Pressure reference, or both

Specification:
