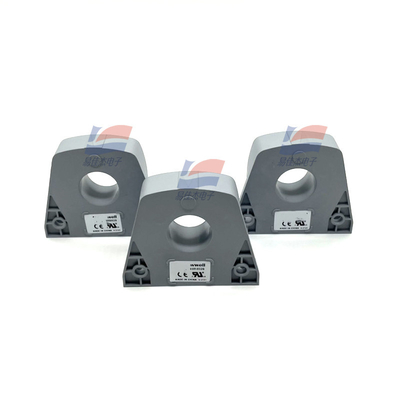

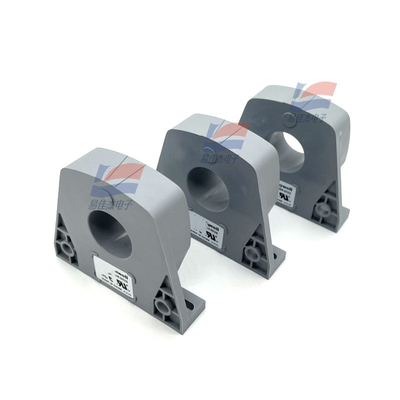

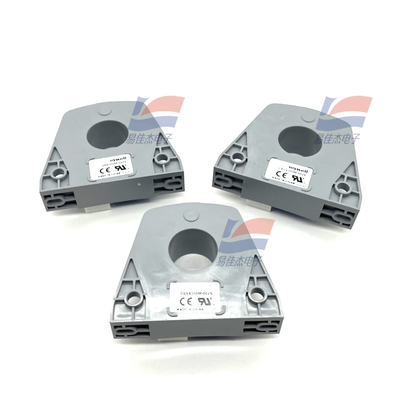

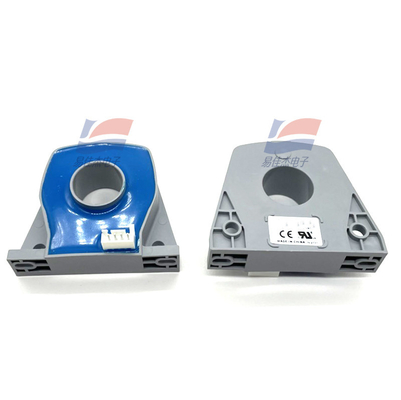

CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters

CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters

CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters
CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters

Μεγάλες Εικόνας :  CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters

Λεπτομέρειες:
Τόπος καταγωγής: ΗΠΑ
Αριθμό μοντέλου: CSNS300M-001
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1pcs
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Τυπική συσκευασία
Χρόνος παράδοσης: 5-8 εργάσιμες ημέρες
Όροι πληρωμής: Δ/Κ, D/Α, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 5000 κομμάτια

CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters

περιγραφή
ονομαστικό ρεύμα: 300A.t rms Εύρος Μέτρησης: 0 έως ±600A.t
Μέτρηση της αντίστασης: 5 ohm - 50 ohm όταν η τάση είναι ±15V ρεύμα εξόδου: 100mA σε 200A, 150mA σε 300A
Ακρίβεια: ±0,5% Τάση Τροφοδοσίας: ±15V dc (±5%)
Επισημαίνω:

current sensor for servo systems

,

high-voltage current sensor

,

frequency converter current sensor



                       CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters





Application:

Mainly used for current measurement and monitoring, applicable to various speed drives, servo systems, overcurrent protection devices, ground fault detectors, robots, power supplies, wattmeters, etc. It is also widely used in fields such as wind energy and solar energy, high-voltage frequency converters, electrochemical metallurgy, new energy vehicles, etc., helping to achieve precise current detection and control to ensure the safe and stable operation of the system.



Features:

  • High precision: Accuracy is better than ±0.5%, enabling accurate current measurement to help improve power conversion efficiency.
  • Fast response: Response time is less than 500ns, which can quickly react to current changes and provide timely current feedback.
  • Good linearity: Linearity is better than ±0.1%, with an excellent linear relationship between output and input current, making measurement results more reliable.
  • Strong anti-interference ability: With excellent electromagnetic compatibility (EMC), it can withstand complex electromagnetic interference environments to ensure measurement accuracy.
  • Good electrical isolation: Primary and secondary electrical insulation can reach 6kV rms/50Hz/1 minute, effectively isolating the primary and secondary circuits to ensure the safety of equipment and personnel.
  • Good temperature stability: Small temperature drift, less affected by temperature changes, and can work stably in the industrial temperature range of -40°C to +85°C.
  • Wide measurement range: Rated current is 300A.t rms, and the measurement range can reach 0 to ±600A.t, meeting various current measurement needs.



Rated Current (In) 300A.t rms (rated value)
Measurement Range 0 to ±600A.t (DC or AC peak)
Measuring Resistance (at 70℃) 5ohm - 50ohm with ±15V, at ±300A.t Max
5ohm - 25ohm with ±15V, at ±600A.t Max
Analog Output Current (at 300A) 150mA
Turn - Ratio 1/2000
Accuracy (at 25℃) Better than ±0.5% In
Supply Voltage ±15V dc (±5%)
Electrical Isolation between Primary and Secondary 6kV rms/50Hz/1 minute
Offset Current (at 25℃) Better than ±0.2mA
Thermal Drift of Offset Current (0℃ to 70℃) Better than ±0.4mA
Linearity Better than ±0.1%
Response Time Less than 500ns
Bandwidth From DC to 150kHz
dI/dt Greater than 100A/μs
Operating Temperature Range - 40°C to + 85°C



CSNS300M-001 Current Sensor For Servo Systems High-voltage Frequency Converters 0
